Induction Cooktop Circuit Board Removal
Step 1

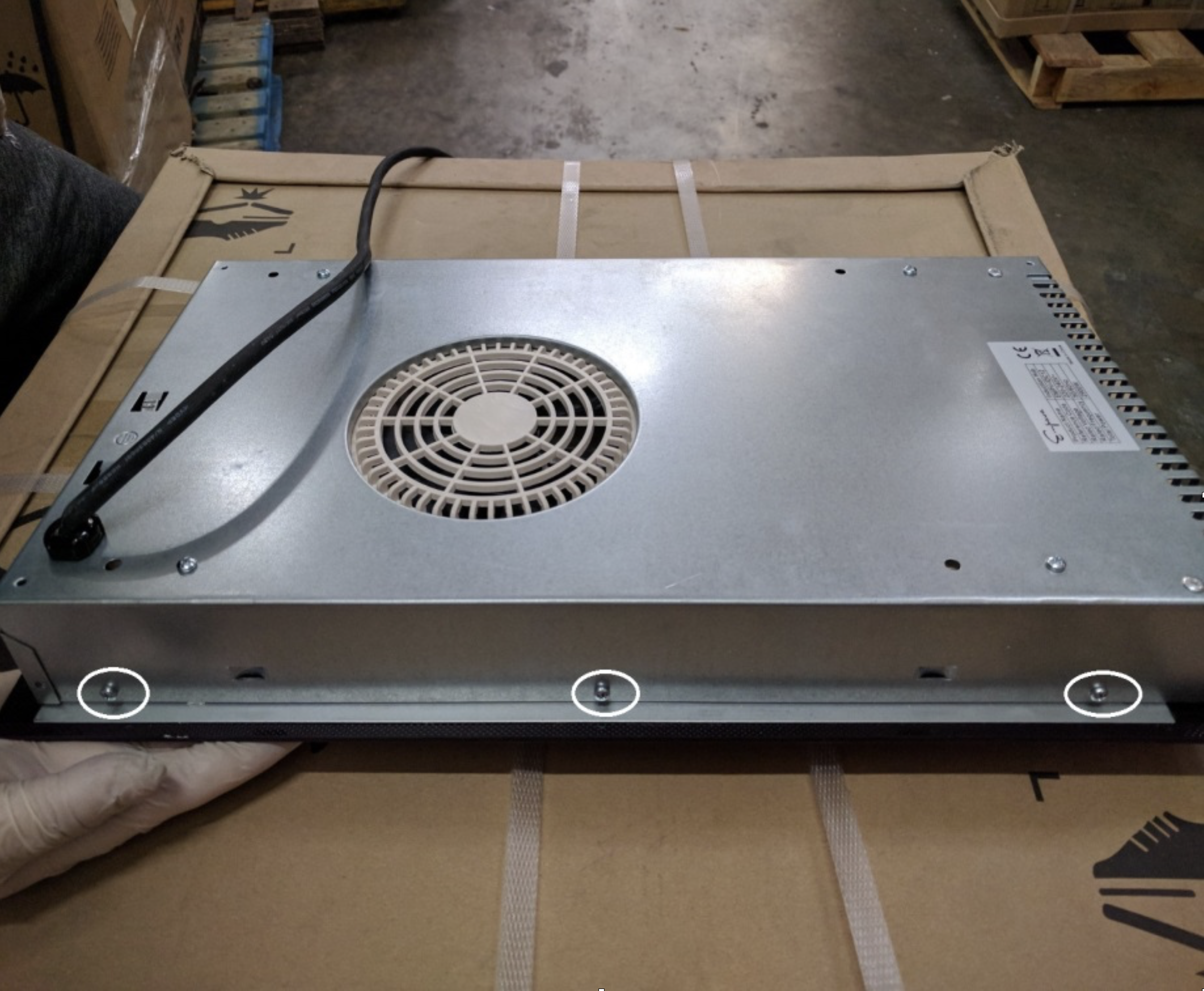

Remove the six screws showed below figure (3 Screws on each side). Then remove the top cover (Black surface)
Step 2

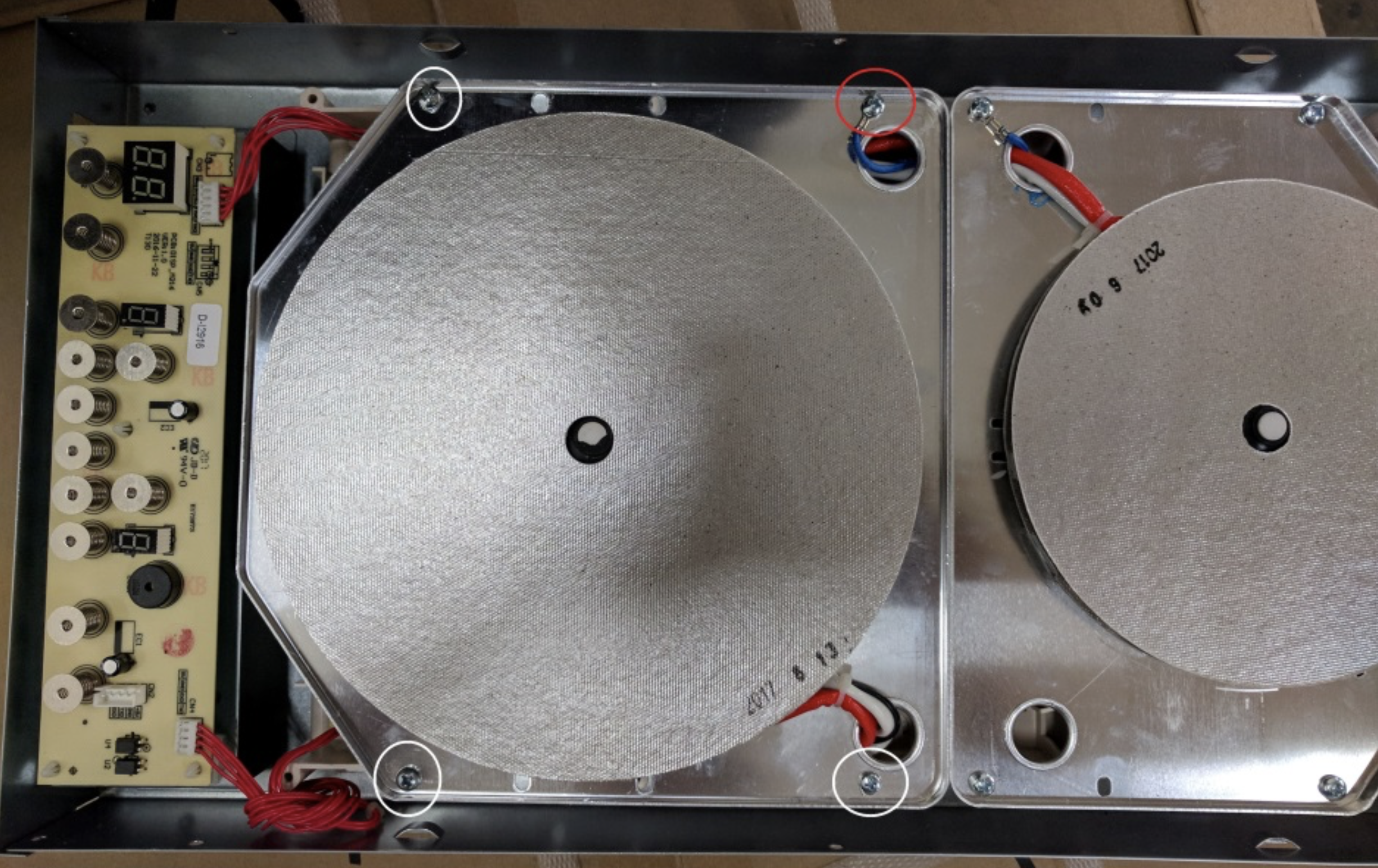

Remove the four screws showed in below figure
Note: The screw that is marked by red circle is a different screw than other three.
Step 3

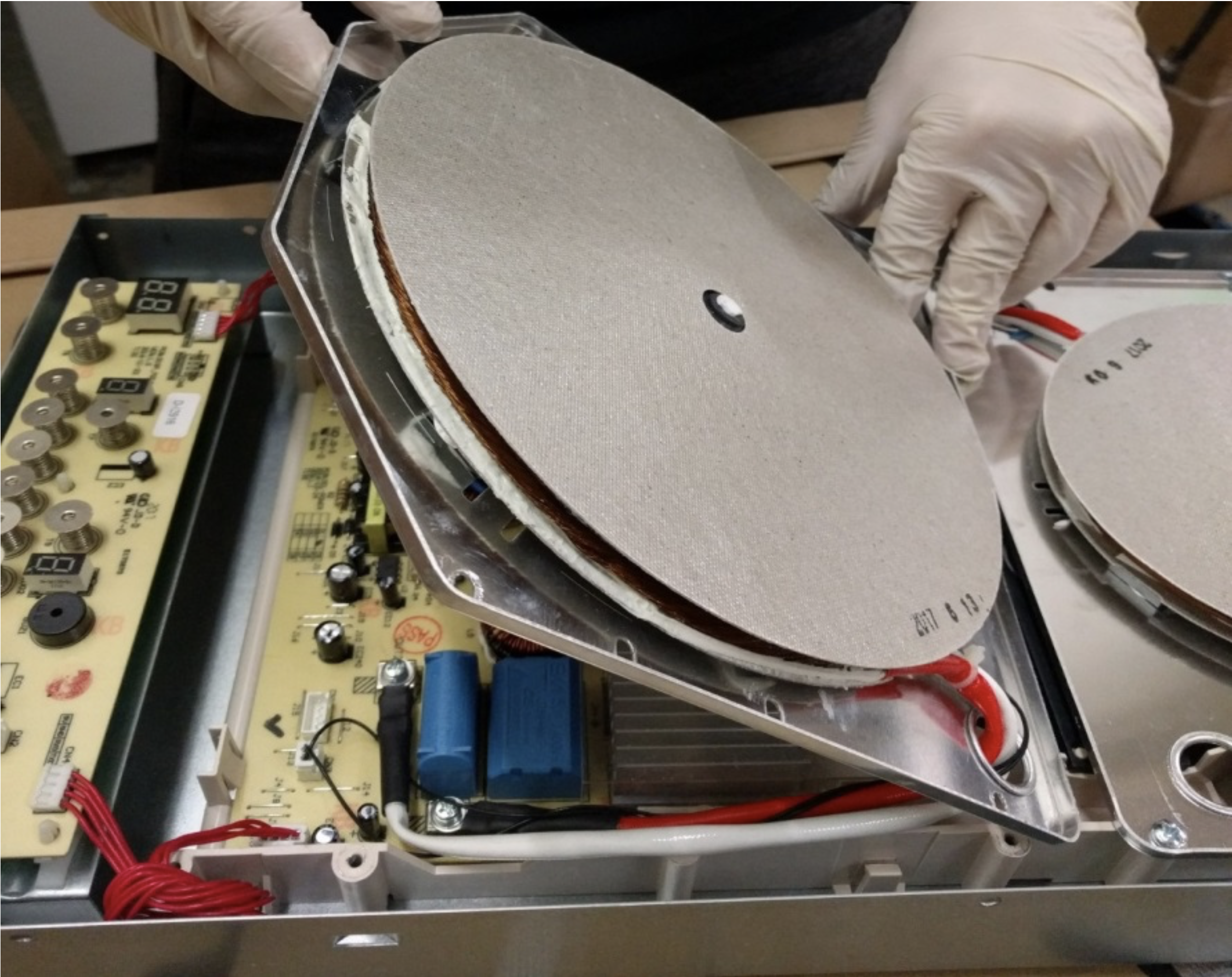

The induction base can now be flipped over and then you will be able to see the circuit board that needs to be replaced
Step 4

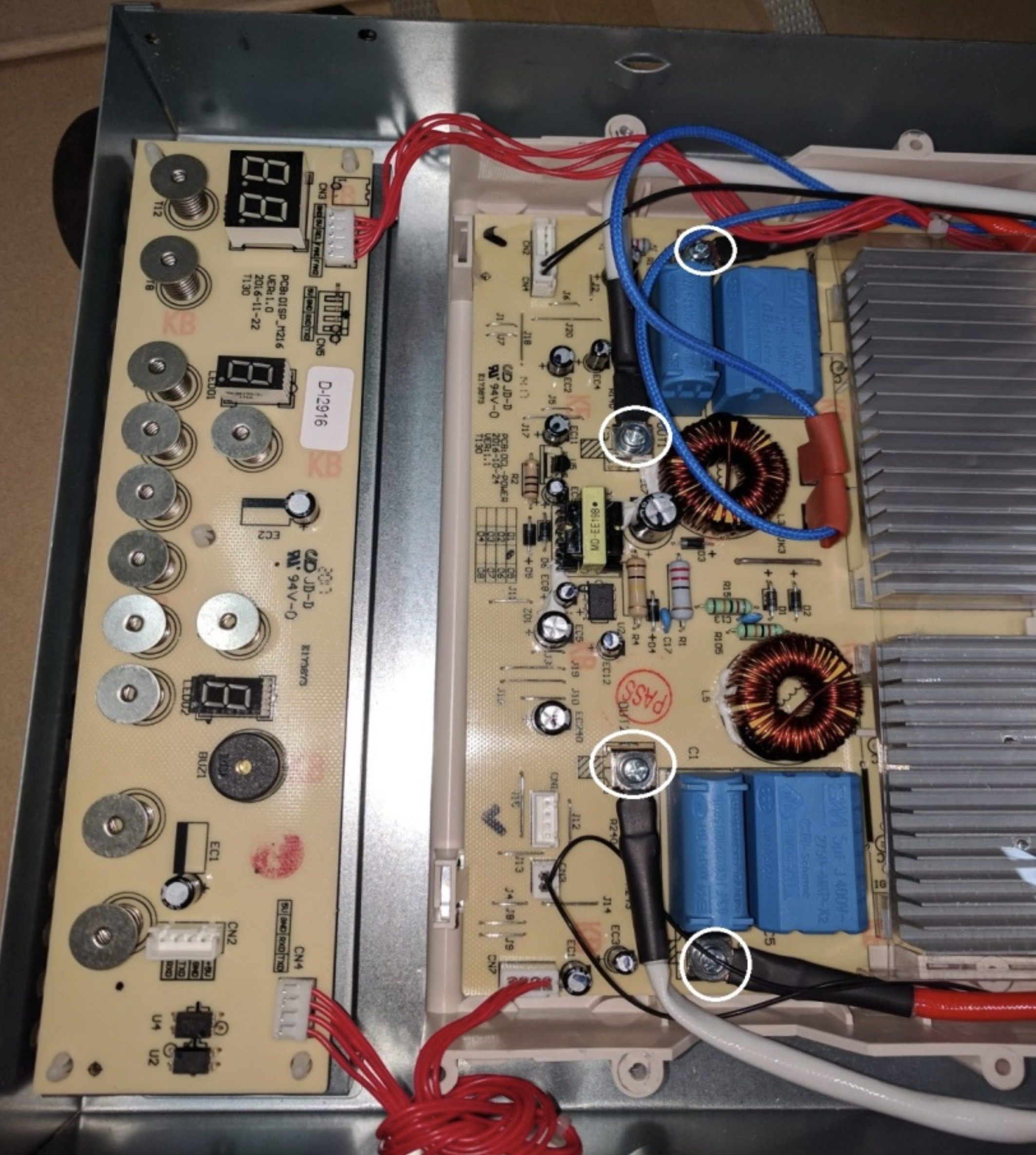

Remove the four screws circled in white from below figure
Step 5

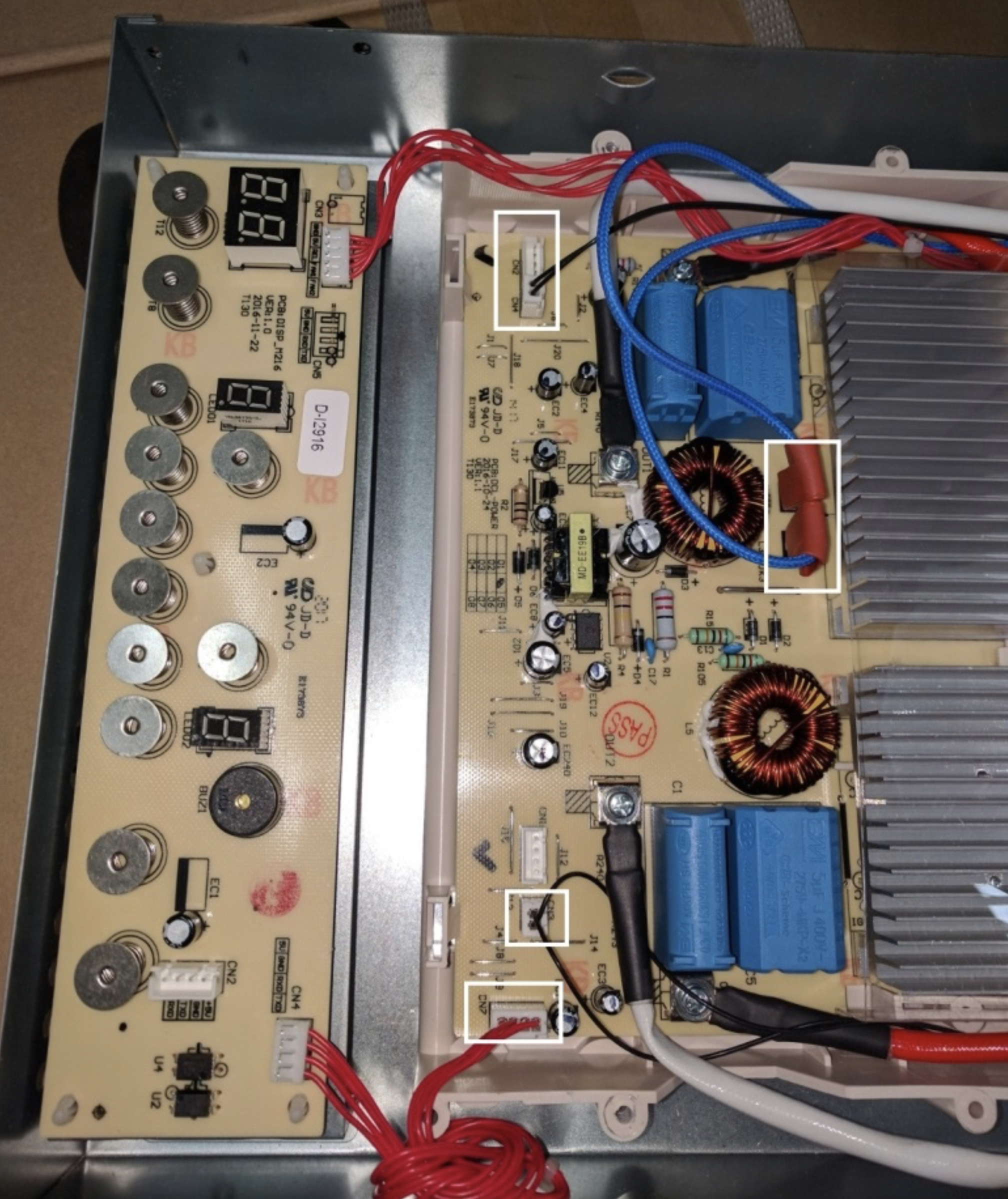

Unplug the connectors from below figure which is marked by White Rectangle
Step 6
Reverse the steps when exchanging to new circuit board.
